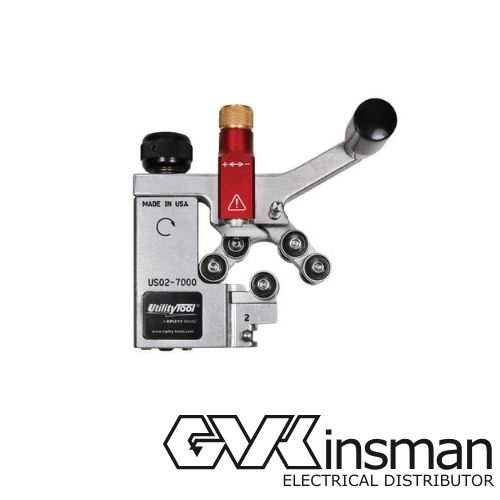

BONDED/VULCANISED SEMICON SHAVING TOOL 18-60MM OD
Description
Description

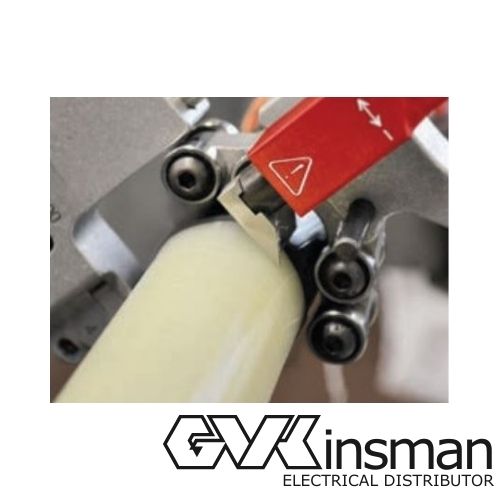

The US02 quickly and easily removes bonded semi-con from 5 to 35 kV power cables. Its unique blade shape preserves the smooth surface on insulation, eliminating the need for deburring or additional surface finishing. Its optimal stability design securely supports cables with diameters from 18 mm to 60 mm throughout the shaving operation.
Features
- Compact design accurately removes semi-con within 30 mm of the jacket on mid-span & end stripping applications.

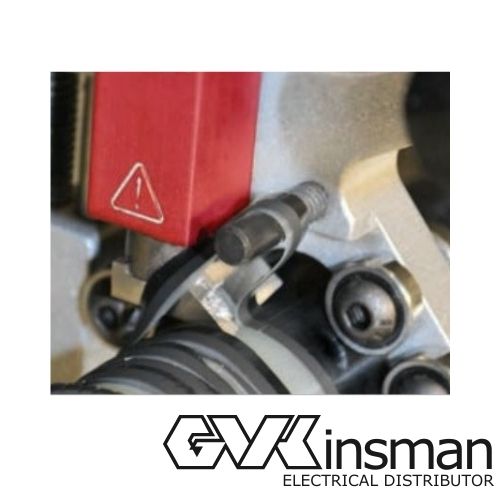

- Precision blade depth adjusts in increments of 0.1 mm.

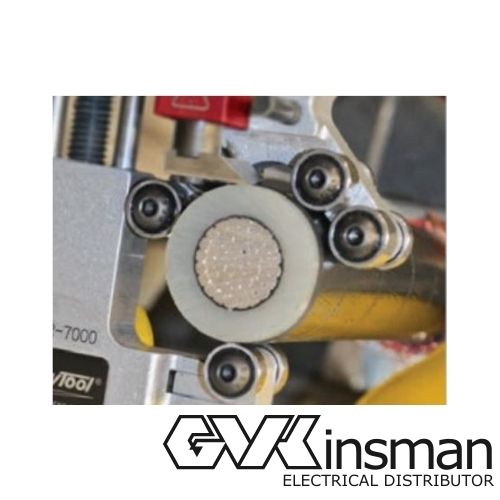

- Adjusts for 18 mm to 60 mm cable diameters with semi-con thicknesses up to 2.4 mm.
- A revolving ergonomic handle & accessible adjustment knobs reduce effort & potential strain from repetitive shaving functions.

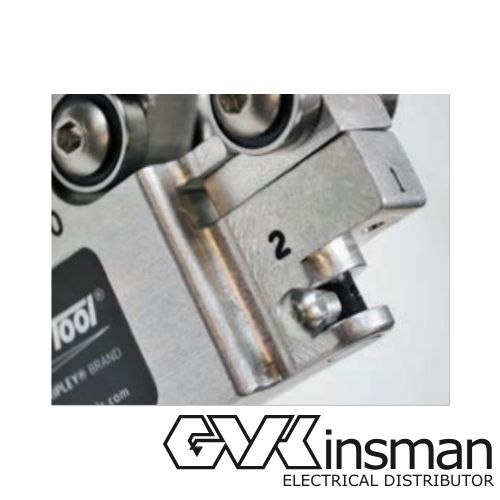

- Stop position squares off the edge to complete the shaving operation without the need for an additional clamp.
- Factory-set blade is easily replaced.
Details
-
Size:18-60MM DIAMETER OVER INSULATION
-
Colour:BLUE/SILVER
