Stock Code:
SCS-V2
Stock Level:
In Stock
PRECISION SEMICON SCORING TOOL 0-4MM DEPTH 8-51MM OD
Description

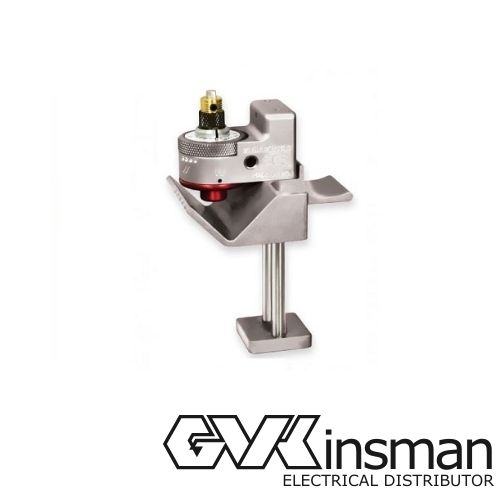

Semi-con Scoring Tool (Longitudinal & Spiral Cuts) – Ripley SCS
Ripley SCS semi-con scoring tool removes easy strip (peelable) type semi-con screens from high voltage power cables, this includes 11kV and 33kV HV power cable.
Ripley SCS cable jointers tool accommodate 8-45mm cable diameters and is perfect for high voltage power cable preparation prior to jointing and terminating and easily mounts on the cable.
The SCS tool has capability for longitudinal & spiral cable cuts and for calibrated square cuts. Ripley SCS HV semi-con scoring tool is suitable for semi-con stripping on 3 core cables where tight work space necessitates a compact cable jointers tool.
Features

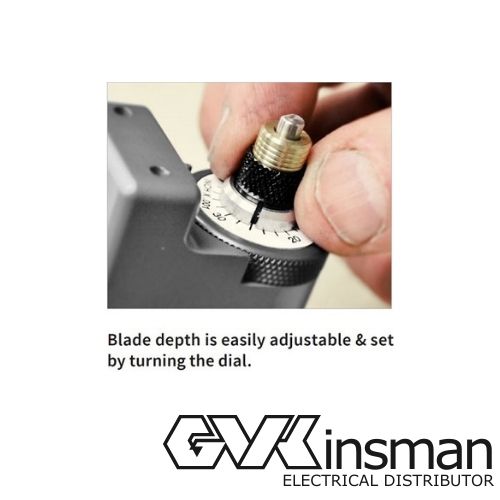

- Easy and precise blade adjustment from 0 to 0.16 in (0-4 mm) depth in 0.002 in. increments for accurate semi-con scoring
- Accomodates cable ranges of 0.31 in. – 1.77 in. (8 mm – 51 mm)
- 2 in. envelope on larger cables

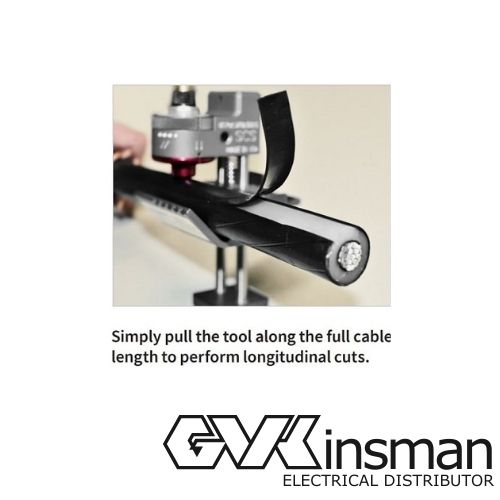

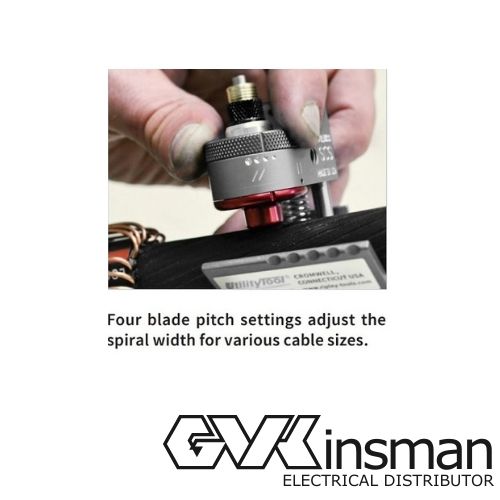

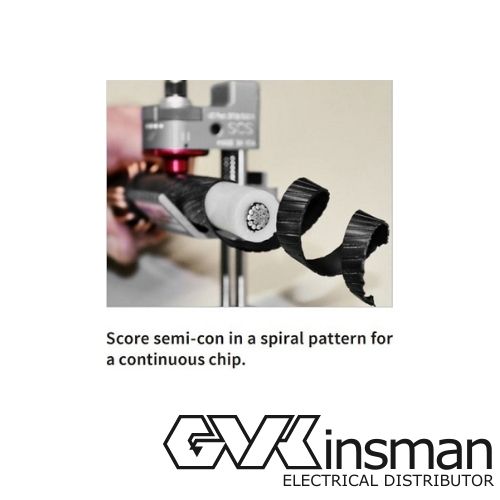

- Capability for longitudinal and spiral cuts
- Capability for calibrated square cut
- Compact design allows for easier use and storage
- Allows for easy blade change
- Easily mounts on the cable
- Made in the U.S.A.
- 130mm Long
Details
-
Size:0-4MM DEPTH 8-45MM OD
-
Colour:SILVER
