Stock Code:
SCS-C
Stock Level:
Back Order
SEMICON SCORING STOP SUIT SCS-V2 TOOL 8-51MM OD
Description

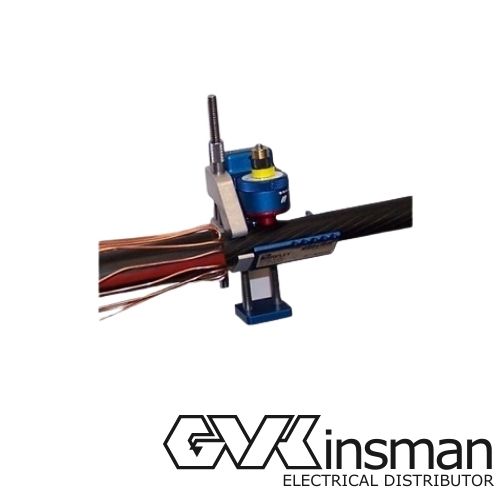

The Utility Tool SCS-C stop clamp is a complementary tool used with the SCS and Banana Peeler semi-con scoring tools to assure precise semi-con shield preparation.
High voltage failure analysis has proven that insulation damage and/or poor semi con preparation can lead to premature elbow, termination, or splice failure. The terminal point of the semi-con is an area of common failure. The SCS-C clamp insures a precise circumferential ring cut during the semi-con preparation process.
FEATURES
• For semi-con diameter up to 51mm
• Narrow profile
• Tool reference lengths
SPECIFICATIONS
• Min. Cable Outer Diameter: 8mm
• Max. Cable Outer Diameter: 51mm
• Material: Aluminum
• Length: 114mm
• Weight: 77g
Details
-
Colour:SILVER
