Stock Code:
SCS-MAX
Stock Level:
In Stock
45-75MM CABLE SEMI-CON SCORING TOOL METRIC
Description

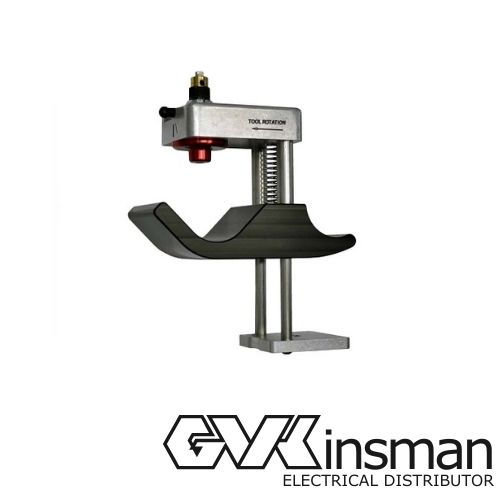

The SCS MAX Semi-con Scoring Tool is an extended version of the popular SCS-V2 tool, designed to make precision score depth cuts on large diameter power cable with strippable semi-con for proper semi-con removal.

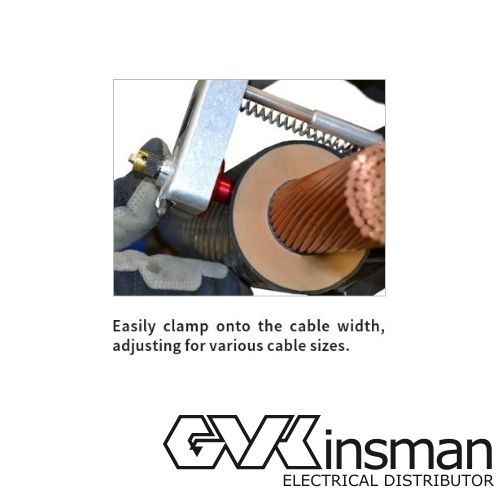

The tool has a cable size range of 45 to 75mm diameter over the semi-con screen and a scoring depth up to 4mm.
Features
• Compact & user-friendly tool scores semi-con on large cables without damaging the insulation
• Eliminates the need for traditional stripping knives, reducing the risk of cuts or lacerations

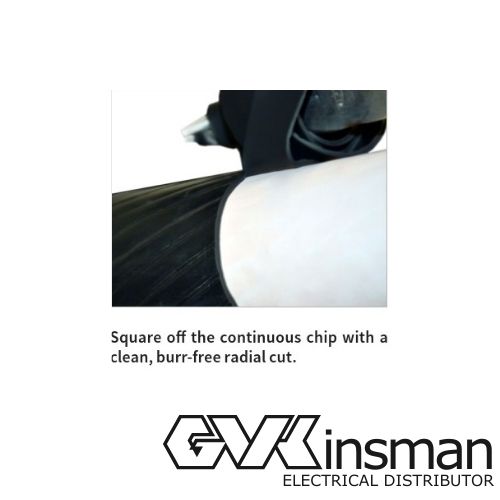

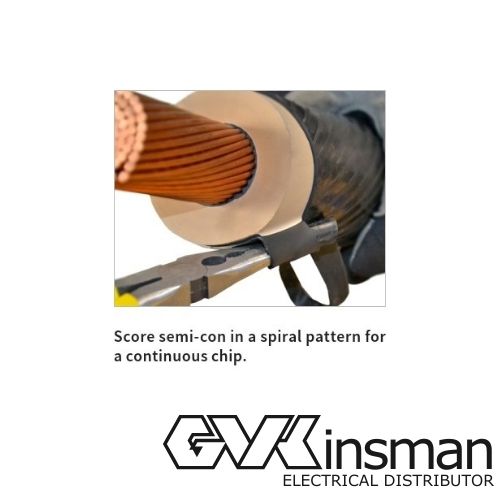

• Performs spiral & calibrated square cuts on cable diameters ranging from 45 to 75mm

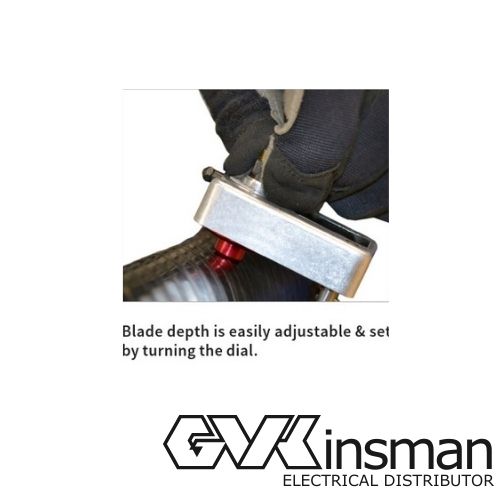

• Precise & easily adjustable blade depths from 0 to 4 mm in increments of 0.05 mm
• Operates within a 101.6mm envelope on larger cables
Details
-
Size:45-75MM OD
-
Colour:SILVER/BLACK
