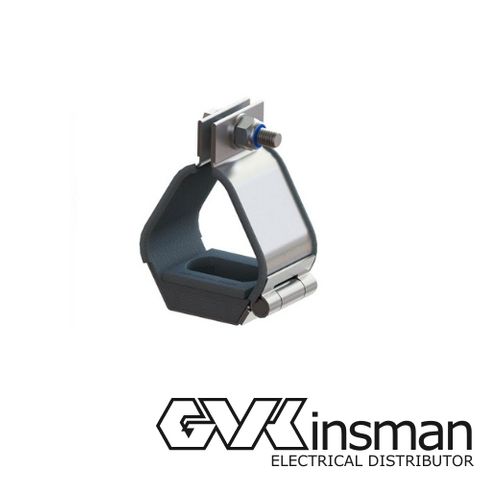

CMP PATRIOT (SDSS) STANDARD DUTY STAINLESS STEEL CABLE CLEAT
Description
The Patriot cable cleats are metallic cable cleats which have been designed, constructed, and tested in accordance with the International Standard ‘cable cleats for Electrical Installations’ IEC 61914 to ensure the securing and retention of cables, without sustaining damage to the cable.
The range is fabricated from 316L stainless steel, giving it high creep strength whilst providing excellent corrosion resistance in the harshest of environments. The Patriot cable cleats are available for trefoil application / formation for diameters of 17mm to 128mm in 24 sizes.
The cleat has three M10 fixing clearance holes within one base allowing versatility to the installer during installation, and is designed to enable the product to be secured to a variety of mounting surfaces. The hinge opens fully allowing the cables to be easily placed within the cable cleat to aid the installer before closing and securing via the mouth piece bolt.
Liners come as standard which help to restrain the cable(s) within vertical applications. Where thermal elongation of cables occurs, the liner also provides a layer of protection between the cable sheath and the cable cleat during normal operation. This additional layer protects the cable from chafing on any mounting surface due to differential movements such as those found in marine and offshore applications. The liners also assist in the extra protection of cable(s) in the event of short circuit fault conditions.
The standard liners supplied are classified as Low Smoke & Fume (LSF), Zero Halogen (LS0H) and Phosphorus Free.
Features
• Third party certification to IEC 61914
• 316L stainless steel
• 17 - 128mm in 24 sizes for trefoil formation / application
• Short circuit rating of 135kA peak fault
• Operating temperature -50°C to +60°C
• Liners are classified as Low Smoke & Fume (LSF), Zero Halogen (LS0H) and Phosphorus Free
• Combined single (M10) or two bolt (M10) fixing design
