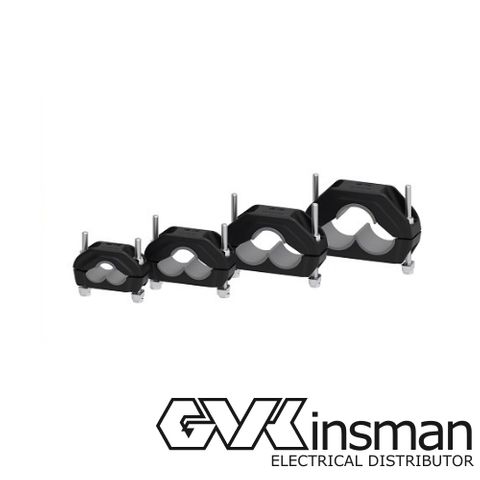

RAYCHEM FULLY DRESSED TREFOIL CABLE CLEATS
Description
TE Connectivity’s (TE) Trefoil Cable Cleats are designed to offer a highly reliable retention system for cables and terminations in LV, MV and HV applications. Their compact and stackable design is ideal for installation where space is limited, such as wind farms, data centers and substations.
The trefoil cable cleats are engineered to withstand harsh environments. Made from impact-resistant, UV-stabilized, halogen-free, polymeric flame-retardant V0 material that is UL certified, they perform under extreme temperatures from -40°C to +120°C (-40°F to +248°F).
Tested according to IEC 61914, the cable cleats provide high resistance to electromechanical forces during short circuit conditions, without causing damage to the cables. They also ensure an excellent mechanical performance due to their innovative rib design and glass fiber reinforced material.
An easy and fast installation is achieved thanks to their simplified design without any need for reinforcing accessories. The flat surface of the cable cleat allows different stacked configurations without special hardware or height adapters. Our trefoil cable cleats are range-taking to fit cables with an outer diameter up to 75 mm (2.95 inches), and are suitable for both metric and imperial sized hardware.
The interlocking EPDM molded inserts accommodate cable expansion, contraction, and vibration, as well as offer an increased level of asset protection and reduce mechanical load in vertical applications. The SS304 stainless-steel hardware offers higher corrosion resistance and mechanical performance. To serve a wider application range, our cable cleats are also available as single and dual versions.
FEATURES & BENEFITS
- Made from impact-resistant, UV-stabilized, halogen-free, polymeric flame-retardant V0 material for use in harsh environments
- High resistance to electromechanical forces
- Strong mechanical performance due to innovative rib design and glass fiber reinforced material
- Easy and fast installation thanks to simplified design
- Flat surface design allows stacked configuration without an adapter
- Interlocking EPDM molded inserts version for increased asset protection
- Available with stainless-steel hardware for higher corrosion resistance and mechanical performance
