Stock Code:
BM162S
Stock Level:
Back Order

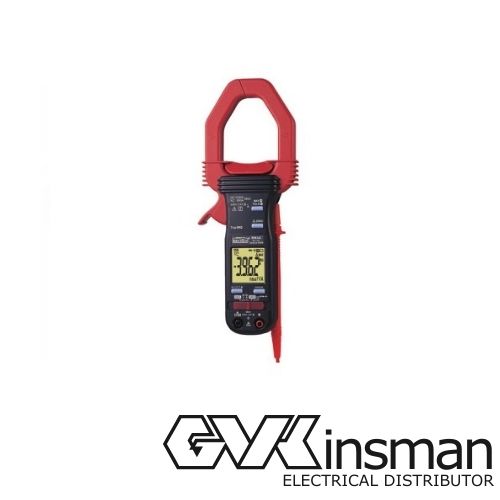

CLAMP METER 1000A AC/DC WITH LARGE CLAMP UP TO 45MM DIA.

Make an Enquiry

Description

BM162 – High quality versatile AC/DC clamp meter, full of industrial features dedicated for professional users.

BM162 Advanced AC/DC clamp meter. True RMS is measured in range of 50~500Hz and 40~400Hz. Dedicated for industrial use, equipped in Data-Hold, Peak-Hold RMS and ? Rel function. High transient protection – up to 6.5kV/50µs. Large U-Shape jaws for measure large single conductor or differential currents of multiple conductors, 1000A DCA/ 800A ACA max current ranges, backlighted LCD.

MANUFACTURER
Brymen

TRUE RMS
AC

SAMPLING
3x/s

ACCURACY (DCV)
0.3% + 3d

MAX CONDUCTOR SIZE
50mm

CURRENT MEASUREMENT
AC/DC current

FUNCTION & FEATURES
Clamp meter

BASIC MEASUREMENT
ACA, ACV, DCA, DCV

OTHER MEASUREMENTS (MAX RANGE)
Capacitance, Resistance

SPECIAL FUNCTIONS
Crest 30ms, HOLD, MAX HOLD, REL

TEST FUNCTIONS
Continuity test, Diode test

SURGE PROTECTION
6,5kV

MEASUREMENT CATEGORY (SAFETY)
CAT III

CATEGORY VOLTAGE
600V

STANDARD ACCESSORIES
Battery installed, Soft carrying pouch, Test leads (pair), User's manual

DIMENSIONS: DEPTH
40mm

DIMENSIONS: WIDTH
78mm

DIMENSIONS: HEIGHT
227mm

WEIGHT
290g

Details

  • Colour:
    BLACK/RED
