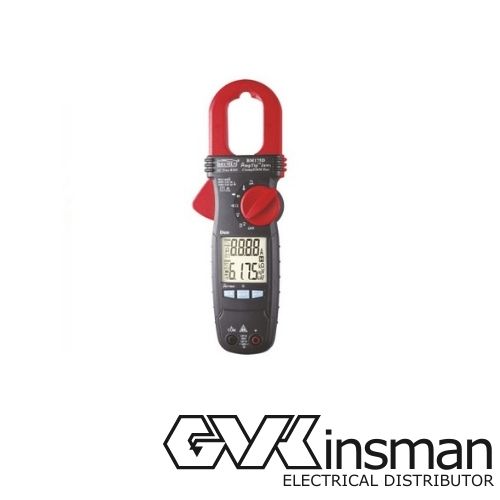

CLAMP METER 600A AC WITH VOLTS & AMPS DUAL DISPLAY

Stock Code:
BM175D
Make an Enquiry
Login For Price

Description

M 170D new series of dual measurement A+V clamp meter with advanced performance is designed to measure currents using innovative AmpTip™ jaws for slim conductors in CATIII 600V areas. Ergonomic All-in-one AC 600A, 3-terminal phase rotation, AC True RMS. The ergonomic design of Brymen clamp meters are ideal for measuring current in even the most confined of spaces.

TrueRMS measurements and optimized ergonomics make the BM 175D Clamp Meter the best general troubleshooting tools for commercial and residential electricians. BM170D series is designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 600 A in tight cable compartments as well as small conductors using AmpTip™ jaws.

Unique features:

Duo-core Dual Measurements – Conveniently measure Amps + Volts or another DMM function

VFD V & Hz – Variable Frequency Drives – measures fundamental voltage and frequency of most variable frequency drives

In-Rush Peak RMS – Captures In-rush Peak RMS reading at duration as short as 80ms

HI/Lo EF-detection – both non-voltage (NCV) and single probe voltage detection for indentifying live lines

Audibile & Visibile Continuity – for quick open-short tests on switches, fuses, and wires, visible flashing icons

MANUFACTURER
Brymen

TRUE RMS
AC

SAMPLING
5x/s

ACCURACY (DCV)
1,0% + 5d

MAX CONDUCTOR SIZE
30mm

CURRENT MEASUREMENT
AC current

FUNCTION & FEATURES
Clamp meter

OTHER MEASUREMENTS (MAX RANGE)
Capacitance, Current µ DCA (via test leads), Frequency, Resistance, Temperature

SPECIAL FUNCTIONS
Crest 80ms, HOLD, VFD

TEST FUNCTIONS
Continuity test, EF voltage detection

SURGE PROTECTION
6kV

MEASUREMENT CATEGORY (SAFETY)
CAT IV

CATEGORY VOLTAGE
300V

STANDARD ACCESSORIES
Alligator clip set, Battery installed, BKP60 K-type thermocouple, Soft carrying pouch, Test leads (pair), User's manual

DIMENSIONS: DEPTH
37mm

DIMENSIONS: WIDTH
76mm

DIMENSIONS: HEIGHT
217mm

WEIGHT
186g

Details

  • Colour:
    BLACK/RED
