Stock Code:
RS-AUTO-36V
Stock Level:
Back Order

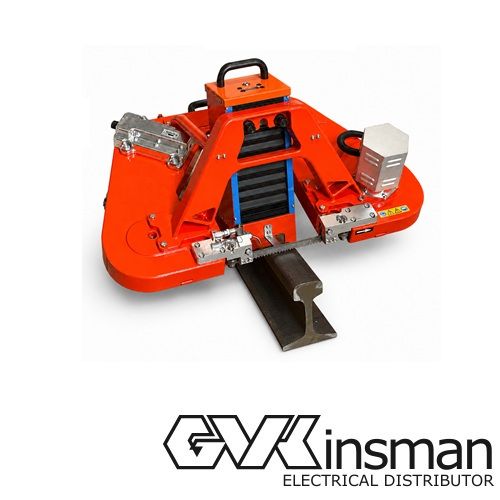

UTILITOOL AUTOMATIC RAIL BAND SAW 36V BATTERY POWERED

POA
Make an Enquiry

Description

2.2kW Lithium Battery powered, water-cooled band saw for cutting rail in the field. Clamp it, press start, walk back. Automatic rail-model recognition, automatic feed, automatic reset. The face comes off the saw at ≤0.5 mm verticality with no bluing, weld ready with no re-facing required. No fuel, no fumes, no sparks. Cuts non-quenched rail up to 75 kg/m.

Key features

  • Fully automated cutting cycle: automatic rail-model recognition, automatic feed and automatic reset, with overload protection and an emergency pause.
  • Water-cooled cutting produces a face at ≤0.5 mm verticality with no bluing and no heat-affected zone, meeting rail welding standards straight off the saw.
  • Zero-spark cutting, suited to tunnels, urban corridors, station work and fire-ban days.
  • Cordless 36V 12Ah battery, no generator and no fuel leads, with a full recharge in under 30 minutes.
  • Splits into two units for single-person carry and operation: a 30.3 kg cutting unit and a 15.8 kg clamping and feed unit.
  • On-board screen shows live battery charge, temperature and motor speed, with manual/auto mode select, fault codes and Bluetooth data output.

Specifications

ModelRS-AUTO-36V
Max. power2.2kW
MotorDC36V brushless, 8000rpm
Rail capacity≤75kg/m, non-quenched
Max. cutting height≤192mm
Cut time (60kg/m rail)<240 seconds
Cuts per battery charge15+
Blade lifespan≥15 cuts per blade
Coolant5L pressurised tank, clean tap water
Dimensions800mm × 526mm × 491mm
Weight (cutting unit)30.3kg
Weight (clamping & feed unit)15.8kg (excl. battery)
Power supplyDC 36V 12Ah lithium battery, 2.7kg

Not for head-hardened rail. Blade and battery are consumable items.

Details

  • Colour:
    ORANGE
