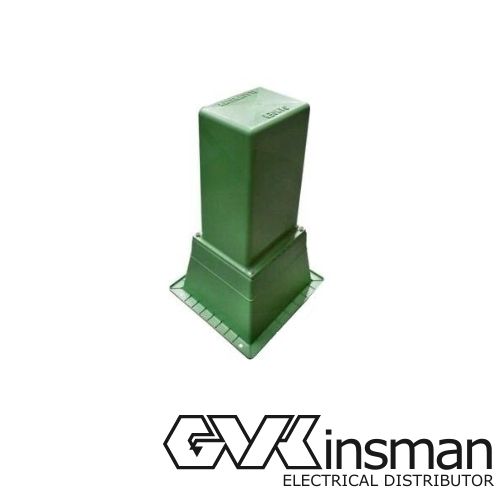

3 WAY MAINS TEE DRESSED PILLAR 185-300MM2 ROUND/SECTOR

Stock Code:
URDV10
Make an Enquiry
Login For Price

Description

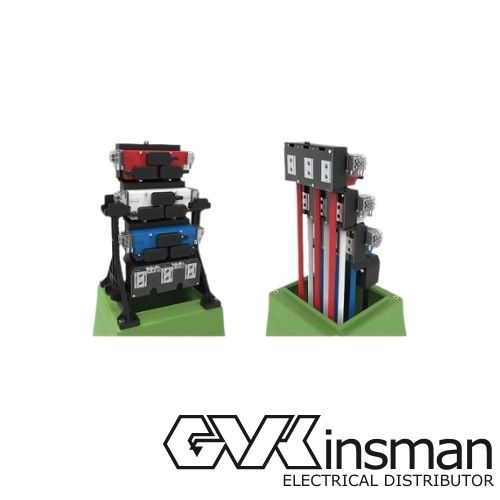

TAPPATLINK 3way open / switching point link pillar is designed to maximize flexibility when it comes to standard link and isolation procedures and load balancing.

This true 3way link pillar is prominently applied in a 3 phase, 400 A, 50 Hz MEN (Multiple Earthed Neutral) distribution system. It can be used in residential or industrial applications to energise or isolate the customer’s LV network, as well as supply multiple LV feeders in parallel.

This new 3way link pillar can be installed easier and faster than its predecessor, with less cable core bending needed for terminating into the double bolted terminals. Each main core is independently separated and insulated. No cross phasing is possible.

This fully insulated and touch-safe unit will provide outstanding flexible control of your LV networks. It is independently tested to meet the requirements of utilities.

Key Features:
- 3x linked mains connections from 185mm2 up to 300mm2, accommodates Al. or Cu. round or sector cables
- 6 service ports per phase,1×70mm2 and 2×50mm2 per each side of the unit
- Staggered main connections run vertically to minimize cable crossings
- Phases independently separated and insulated
- Easier, faster and safer to install and operate

Features & Benefits
- Fully insulated and touch safe system; no exposed live contacts
- True 3way switching to energise or isolate LV mains, or to supply multiple LV feeders in parallel
- Ability to include additional service connections if required
- Tinned brass connections eliminate possibility of corrosion
- Suitable for both Aluminum and Copper cables
- Complete with installation instruction, network and switching labels
- Proven and reliable dovetail connection; no specialized tooling is required
- Make / Break tested – 100 x 100 amps; then 10 x 400 amps
- Tested to 600 amps

Details

  • Colour:
    GREEN
