Stock Code:
URDV9-1B
Stock Level:
In Stock

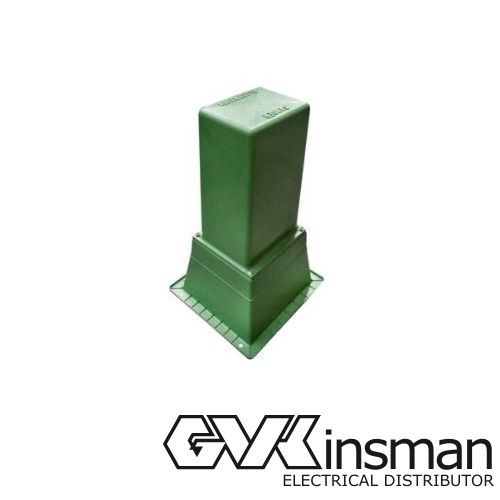

1 BOLT DRESSED PILLAR 185/240MM2 SECTOR W. DISCONNECT

POA
Make an Enquiry

Description

TAPPAT 2way open / switching point link pillar is designed to maximize flexibility when it comes to standard link and isolation procedures and load balancing.

The Tappat pillar is a true 2way link pillar is prominently applied in a 3 phase, 400 A, 50 Hz MEN (Multiple Earthed Neutral) distribution system. It can be used in residential or industrial applications to energise or isolate the customer’s LV network, as well as supply multiple LV feeders in parallel.

This Tappat switching pillar is fully insulated and touch-safe unit will provide outstanding flexible control of your LV networks. It is independently tested to meet the requirements of utilities.

Mains disconnect pillar with removable links to isolate cable sections.

- Single bolt to suit 185 & 240mm2 4C sector cable CU./AL.
- No power take offs
- Comes with neutral block to suit 185 & 240mm2 4C sector cable CU./AL. w. 3 X 6-50mm2 take offs CU./AL.
- Single bolt on the mains cables and two bolts on the takeoff cables
- Comes with bracket for 3 phase grouping
- Comes with all accessories to switch and cover bolt holes
- Vented turret

Top dimensions: 550 H X 230 W X 295 D

Details

  • Colour:
    GREEN
