2M CABLE HEATING BLANKET 0-120C - MAX 16A
Description

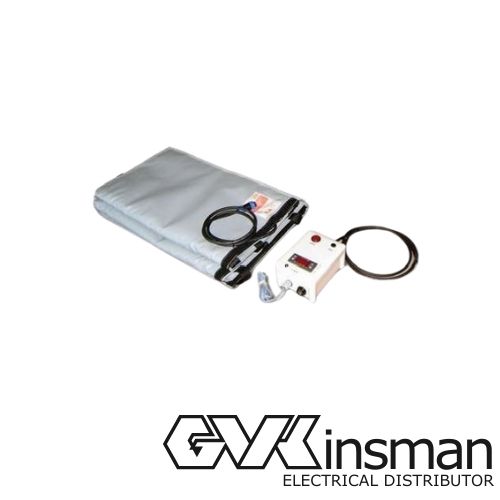

TE Connectivity (TE)’s Raychem heating blanket is used for straightening of polymeric high voltage cables. It’s an essential tool for each high voltage installation. TE offers a complete heating blanket set focusing on safe and steady heating with adjustable temperature up to 120°C.
The heating blanket includes a digital temperature control and is delivered in a plastic tube for easy transportation. The heating blanket covers all common cable cross sections and can be used to heat up different cable dimensions from 60 mm up to 160 mm diameter. The digital temperature control is universally configured and can be used with any other heating blankets of this type. The heating blanket is made of a robust design and splash proofed.
Features
• Robust design and splash proof
• Adjustable temperature up to 120ºC
• Includes a digital temperature control with integrated display
• Easy to use & quick to install
• Operating voltage: 220-240V AC 50/60Hz
• Size: 2.000 x 500 mm Protection class: IP53
• Overlapping of heating blanket is possible
• Complies with European conformation (CE sign)
• Application range of approx. 60 – 160mm cable diameter
• Power supply cable length of 2,65m with standard CEE7/4 two pin grounded plug
• Sensor: PTC with 3m length and integrated inside the heater
• Can be used at ambient temperatures of 0°C up to +40ºC which is in line with our given installation temperature for high voltage cable accessories
Details
-
Size:2M LONG
