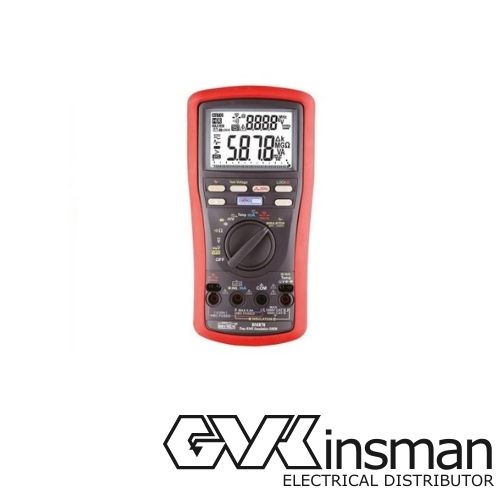

DUAL DISPLAY AC/DC 1000V M/METER W. INSULATION RESIS.

Stock Code:
BM878
Make an Enquiry
Login For Price

Description

BM878 Insulation Multimeters combine a digital insulation tester with True RMS digital multimeter in a single, compact, handheld unit, which provides maximum versatility for both troubleshooting and preventative maintenance. Whether you work on motors, generators, cables or switch gear, the Brymen BM878 Insulation Multimeter are ideally suited to help you with your tasks and at a cost that is far less than buying the two products or three products.

BM878 is the new generation 3 in 1: superior multimeter, insulation tester and earty continuity tester. Helps to determine the state of insulation material and earth continuity for preventive maintenence. Offers five test voltages: 50, 100, 250, 500 and 1000V for insulation as well as 200mA high current test for earth continuity. Convenient remote probe, test inhibits on live circuits, lock feature for continuous testing.

Unique functions:

Beep-Jack™ – beeps against improper terminal plug in (decreases risk of damage)

VFD V & Hz – Variable Frequency Drives – measures fundamental voltage and frequency of most variable frequency drives

REC – recording MAX, MIN, MAX-MIN & AVG

Smooth mode – smooth out unstable insulation resistance reading

X-Speed Capacitance – measures up to 30mF only in few seconds, 1kV protection

Hz of line voltage – measures noisy high voltages ACV frequencies in dual dispaly

Temp – temperature measurement

MANUFACTURER
Brymen

DISPLAY
6000, Backlighted, Bargraph, Dual

SAMPLING
5x/s

TRUE RMS
AC

ACCURACY (DCV)
0,5% + 3d

FUNCTION & FEATURES
Professional multimeter with insulation tester

OTHER MEASUREMENTS (MAX RANGE)
Capacitance 30mF, Continuity, Earth continuity test 200mA, Frequency, Resistance, Temperature

SPECIAL FEATURES
Insulation test, VFD (ACV+Hz)

SPECIAL FUNCTIONS
AVG, HOLD, MAX, MIN, REL, Smooth Mode

INTERFACE
USB

OVERLOAD PROTECTION
1000V

SURGE PROTECTION
8kV

MEASUREMENT CATEGORY (SAFETY)
CAT IV

CATEGORY VOLTAGE
600V

STANDARD ACCESSORIES
Alligator clip set, BKP60 K-type thermocouple, BRP21S2-C Remote probe, Holster, Test probes (pair), User's manual

OPTIONAL ACCESSORIES
BMH-01 Magnetic hanger

DIMENSIONS: HEIGHT
208mm

DIMENSIONS: WIDTH
103mm

DIMENSIONS: DEPTH
64,5mm

WEIGHT
635g

Details

  • Colour:
    BLACK/RED
