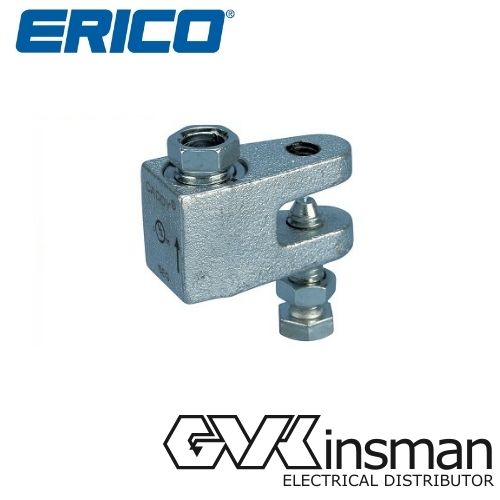

CADDY ROD LOCK BEAM CLAMP, M10, (390002)

Stock Code:
CRLBM10EG
Login For Price

Description

CADDY® ROD LOCK is an innovative threaded rod mounting system from ERICO that provides
a quick and economical solution for installing electrical and mechanical systems supported by
threaded rod. The system includes the CADDY ROD LOCK beam clamp, channel nut and an
anchor screw.

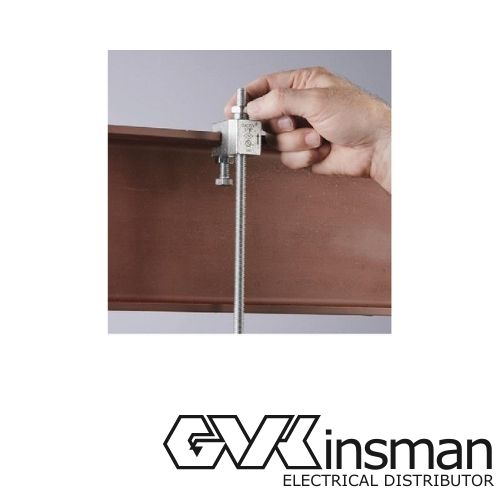

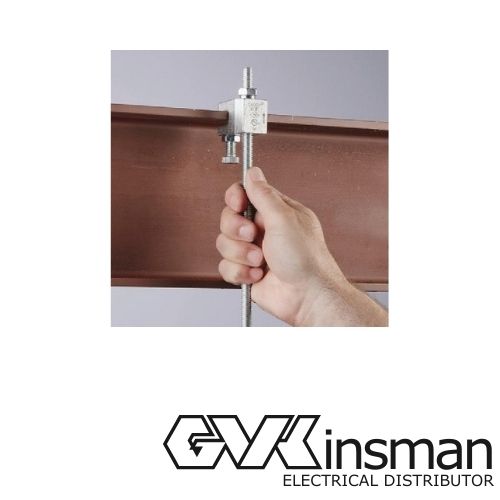

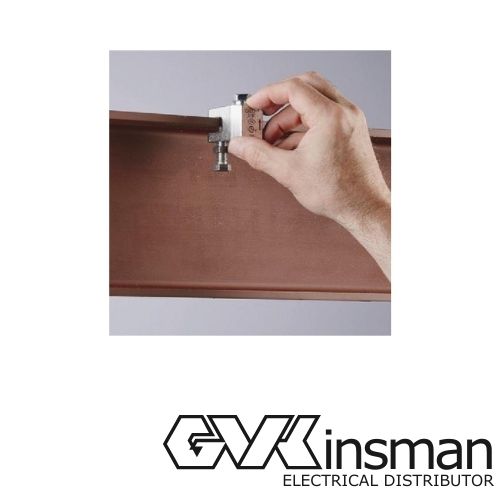

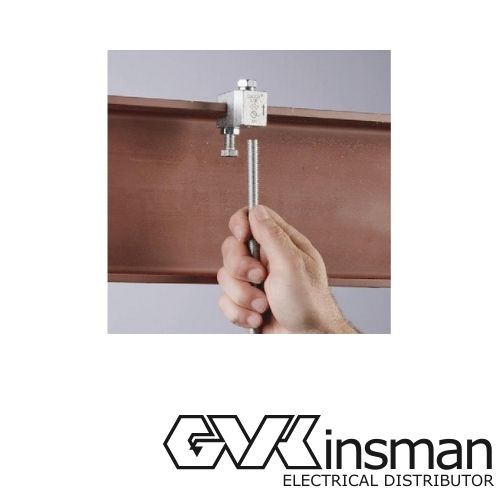

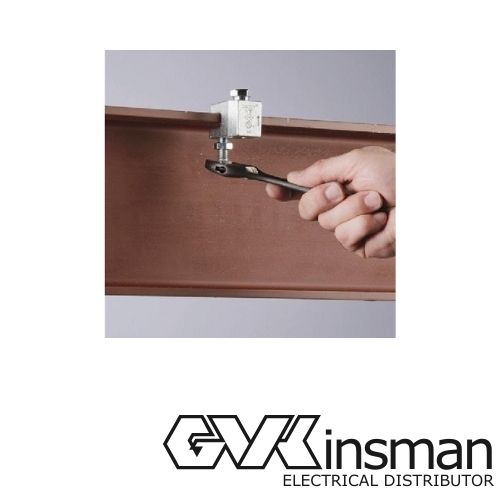

With its breakthrough “push-install” design, CADDY ROD LOCK simplifi es the installation
of threaded rod. Simply push the threaded rod through the mounting hole and it instantly locks
into position. The system can even be used on threaded rod with slightly damaged threads or
minor burrs, helping to save time by minimizing the amount of deburring that is usually required
prior to installation.

The unique features of the CADDY ROD LOCK system help to reduce the installation time
of threaded rod by up to 52% compared to conventional fasteners. In many common
applications, the system also requires less installation hardware.

CADDY ROD LOCK is another innovation from ERICO designed to help the construction industry
complete projects faster, easier and more efficiently.

FEATURES
• Works with slightly damaged threads and minor burrs on the threaded rod
• Reduces installation time up to 60%
• Load capacity up to 500 lbs (3/8” rod) or 2200 N (M10 rod) - depending on flange thickness
• UL® 203 & UL 2239 Approved
• FM® Approved
• Electro-galvanized fi nish
• 3:1 Safety Factor

Specifications:


  • Part Number: CRLBM10EG
  • Article Number: 390002
  • Material: Cast Iron
  • Finish: Zinc Plated
  • Rod Size (RS): M10

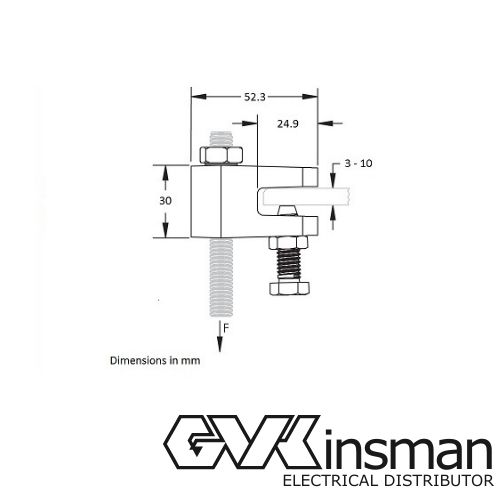

  • Flange Thickness (FT): 3-10mm
  • Height (H): 30mm
  • Length (L): 52.3mm

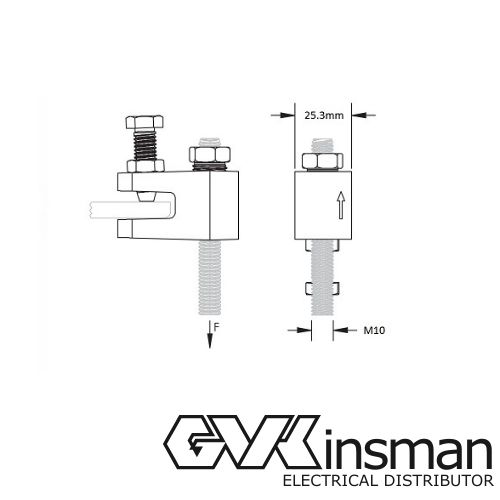

  • Width (W): 25.3mm
  • A: 24.9mm
  • Static Load 1 (F1): 1,100N
  • Static Load 2 (F2): 2,200N
  • NB/DN: 100 Max
  • Pipe Size: 4" Max
  • Certifications: cULus, VdS
  • Standard Packaging Quantity: 25pc
  • UPC: 78285664945

EAN-13: 8711893128871

Details

  • Size:
    3-10MM, M10
  • Colour:
    ZINC PLATE
