Stock Code:
P25-MCF
Stock Level:
In Stock

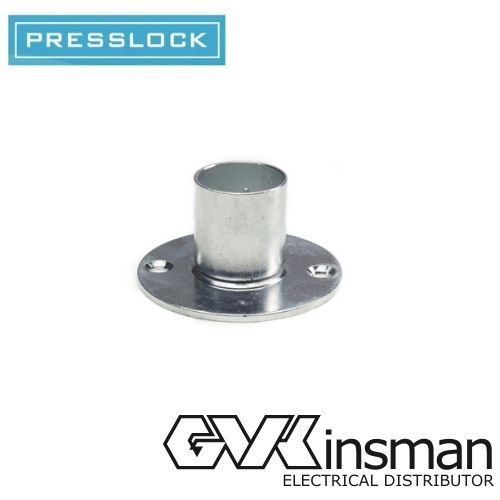

25MM PLAIN METAL CONDUIT FLANGE
Description
Save time, money and increase profits with Presslock conduit and fittings.
With Presslock, conduit requires no threading and assembly in less than half the time taken to install conventional steel conduit. It's ease of bending, snug fit and compatibility with steel conduits of earlier design combined with its competitive price, have revolutionised electrical contracting worldwide.
Conduit sections are joined by simply tapping together. Contact is made between the conduit and fittings by a deformation in the outer expansion, ensuring continuous conductivity.
Features:
- Reduction in tooling makes installations more profitable and viable for contractors.
- Tested and approved by Australian Standards Authority, conforms to AS/NZS 2053.7:2002 (Approval No# TUV16447E(A))
- Rated for use in applications of 240/415V
- Tested for earth continuity 0.01Ohm
- Presslock products are rated at IP65 against external influences, ingress of water and solid foreign objects.
- Compatible with screwed steel and PVC conduit using specially designed fittings
- Finished to a high standard in satin chrome
Note: Manufacturer recommends Loctite 510 or equivalent gasket flange sealant be used in conjunction with Presslock products to attain the IP65 rating.
Specifications:
- Size: 25mm
- Color: Zinc Satin Chrome
- Box Quantity: 20
Details
-
Size:25MM
-
Colour:ZINC SATIN CHROME
