Stock Code:
HCUP-70-18V-95
Stock Level:
Back Order

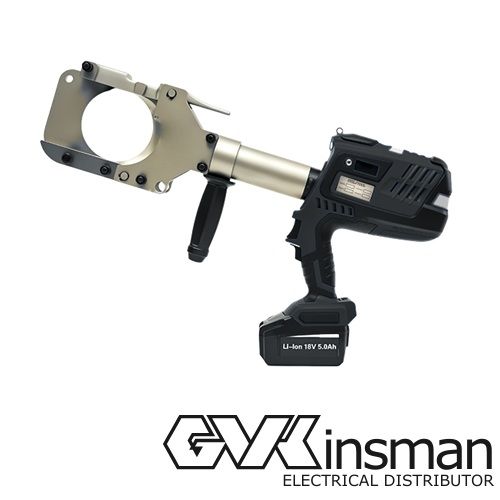

UTILITOOL HYDR. PISTOL GRIP CLOSED CUTTER UP TO Ø 95MM 18V
POA
Description
One-handed hydraulic cutting of copper and aluminium cables to Φ95mm diameter. 88kN of force from an 18V battery, through a double-edged heat-treated alloy steel blade, with a head that rotates through 180° to reach the cable at any angle.
Key features
- 88kN output, 70MPa – built-in high-pressure relief valve for personal and tool safety.
- Double-edged blade – high-strength alloy steel, heat treated; fast cutting speed.
- One-handed operation – one person completes the cutting operation.
- Oil return without power – one-key pressure release and oil return under any circumstances.
- Independent power and oil-return buttons – prevents unintended release.
- 180° head rotation – present the blade at any angle to the cable.
- Dual LED work lights – night work lighting.
- OLED display – operation status.
- Soft rubber overmould – wear-resistant, non-slip grip.
Applications
- Cutting Cu and Al cables to Φ95mm diameter
- Distribution and transmission cable work
- Substation and switchroom installations
- Industrial plant, generation and solar farm cabling
Specifications
| Part number | HCUP-70-18-95 |
|---|---|
| Cutting force | 88kN |
| Operating pressure | 70MPa |
| Cutting range (dia.) | Cu/Al cable ≤ Φ95mm. Not for SWA, ACSR, steel wire, rebar or ground rods |
| Blade | Double-edged, high-strength alloy steel, heat treated |
| Head rotation | 180° |
| Body type | Pistol grip |
| Oil return | One-key pressure release; oil return without power |
| Battery | Makita-type 18V 5.0Ah Li-ion (90Wh) with charge indicator |
| Display | OLED |
| Work lights | Dual LED |
| Frame | Soft rubber overmould, wear-resistant, non-slip |
| Dimensions (L × W × H) | 556mm × 86mm × 426mm |
| Weight | 8.6kg (incl. battery) |
| Service interval | 10,000 cycles |
Tool & accessories
- Cutting tool × 1
- 18V 5.0Ah Li-ion battery × 1
- Charger × 1
- Carrying case × 1
- Available separately: spare 18V 5.0Ah battery
NOT AN INSULATED TOOL. Use only on conductors that have been isolated, proved de-energised and earthed. Do not use for live-line work.
Details
-
Colour:CHARCOAL / BLACK
