Stock Code:
HCRP-13-18V-C42
Stock Level:
Back Order

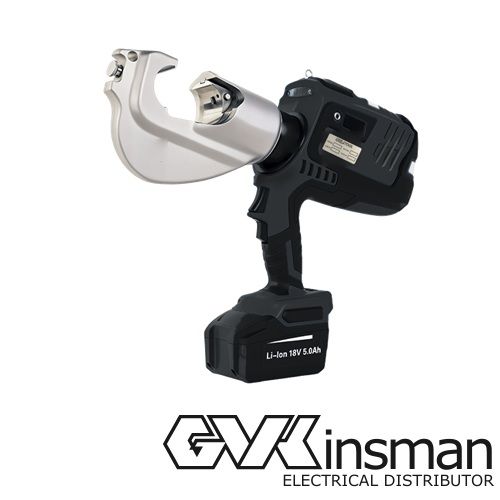

UTILITOOL 13 HYDR. PISTOL GRIP CRIMPER 42MM JAW C-DIE 18V
POA
Description
Battery hydraulic crimping tool for copper and aluminium cable terminals and splicing sleeves to 400mm² on de-energised conductors. 130kN of crimping force from an 18V battery, running the standard 12t die system already in the crew's kit, with a 42mm latching C-head that rotates through 345°.
Key features
- Accepts standard 12t dies – no change of die system; the dies already in the crew's kit fit the tool.
- 130kN force, 70MPa – automatic pressure release and oil return at the end of every crimp.
- Mechanical retraction without power – ram retracts by hand if the battery is flat.
- 345° head rotation – present the die at any angle to the joint.
- 42mm C-head opening – clears large connectors; side entry.
- OLED display with touch navigation – operation status.
- Independent power and oil-return buttons – prevents unintended release.
- Two-colour moulded frame – soft rubber over the grip areas.
- Battery with integral charge indicator.
Applications
- Distribution and transmission cable termination
- Overhead line jointing and termination
- Substation and switchroom terminations
- Industrial plant, generation and solar farm cable jointing
- Switchboard and panel building
Specifications
| Part number | HCRP-13-18V-C42 |
|---|---|
| Crimping force | 130kN (13t) |
| System pressure | 70MPa |
| Crimping range | Cu/Al cable terminals and splicing sleeves ≤ 400mm² |
| Die system | Standard 12t dies |
| Head type | C-head, latching |
| Head opening | 42mm |
| Head rotation | 345° |
| Body type | Pistol grip |
| Oil return | Automatic at rated pressure; mechanical without power |
| Battery | Makita-type 18V 5.0Ah Li-ion (90Wh) with charge indicator |
| Display | OLED with touch navigation |
| Cycle counter | 200,000 crimps, data cable or Bluetooth |
| Frame | Two-colour injection moulded, rubber grips |
| Dimensions (L × W × H) | 391mm × 94mm × 326mm |
| Weight | 7.7kg (incl. battery) |
| Service interval | 10,000 cycles |
Tool & accessories
- Crimping tool × 1
- 18V 5.0Ah Li-ion battery × 1
- Charger × 1
- Carrying case × 1
- Available separately: spare 18V 5.0Ah battery
For use on de-energised conductors only.
Details
-
Colour:CHARCOAL / BLACK
