Stock Code:
UT-RCRH-25T
Stock Level:
Back Order
REMOTE CRIMPING HEAD 25T - 70MPA - LATCHED DIE OPENING
POA
Description

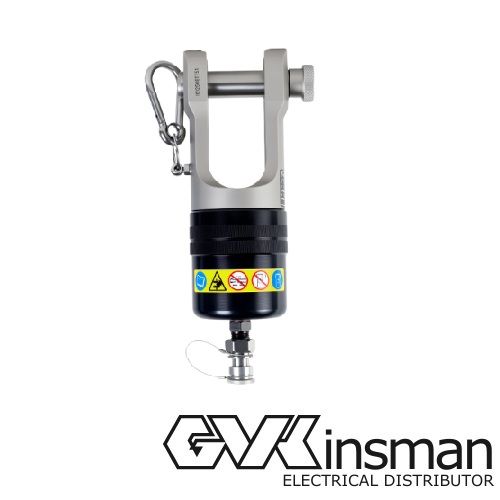

Remote Hydraulic Crimp Head 25T
Application and compatibility:
- 630mm² Cu lugs and splicing sleeves
- 500mm² Al lugs and splicing sleeves
- 400mm² Jumper clamps and repair sleeves
- 35~240mm² Wire clamp tubes
- Cutting off ACSR below 240mm².
Maximum output: 250kN/25T
Pressure: 70MPa/700bar
Size: 300mm×92mm×130mm
Weight: 5.6kg
