Same Day Dispatch
Stock Code:
URD-A-LB
Stock Level:
In Stock

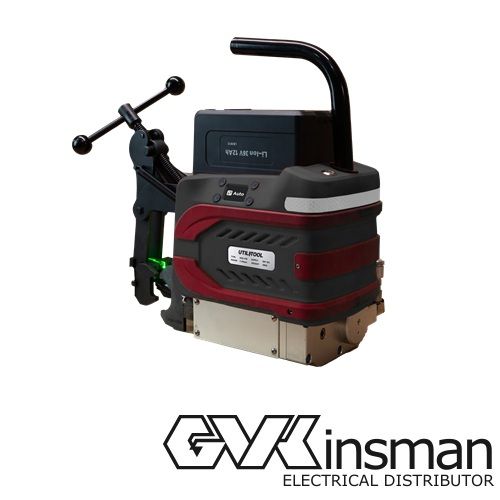

UTILITOOL AUTOMATIC RAIL DRILL 36V LITHIUM BATTERY POWERED

POA
Make an Enquiry

Description

Automatic Intelligent Lithium Battery powered rail drill developed for the Australian rail industry. Suitable for all Australian rail specifications. Light Rail, Heavy Rail, Crane Rail, Girder Rail w. custom rail template fabrication Available fast & economically priced.

FEATURES
• One Button X One Hole – Fully automated operation. Power the unit on & complete a web hole w. one button press
• Measured & Controlled UtiliBroach advance and retract is gentle on the cutter. When using a UtiliTool URB-22-50-WL annular cutter, field trials have achieved ~50 dry 22mm holes before sharpening or replacement of cutter required
• Tool free quick-change chuck for rapid in field UtiliTool UtiliBroach annular cutter size change
• Laser alignment function to allow for milimetre perfect vertical hole alignment
• LED worklight for low/no light conditions
• Specially designed carry case for accessories w. rail wheels for easy no carry site relocation by running along the rail head
• One piece lightweight design w. easy carry handle
• No additional tools or accessories required for operation

SPECIFICATIONS
• Max. Power: 2.2kW
• Power supply: DC 36V 12Ah Large Capacity Lithium Battery
• Drilling diameter: Φ7mm - Φ40mm
• Drilling thickness: ≤ 50mm
• Motor: DC36V Brushless motor
• Dimension: 431mm × 183mm × 367mm
• Weight: 19kg

Details

  • Size:
    431MM × 183MM × 367MM
  • Colour:
    CLARET / GREY

Documents
