THERM CAM 256×192 / -20~550℃ / H50×V37.2° / FF
Description

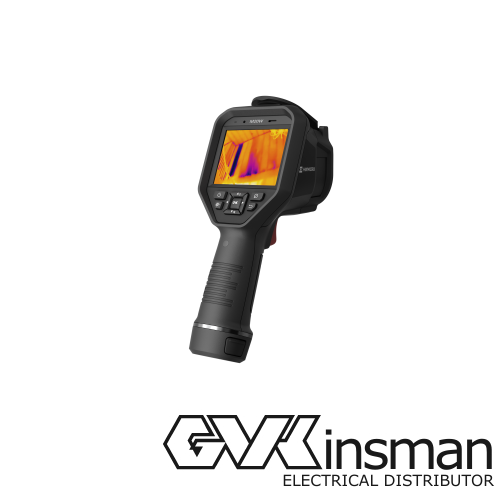

HIKMICRO M20W handheld thermography camera is specially designed for professional inspections of large objects where a wider FOV captures more of the scene in one picture. It’s equipped with a 256 × 192 resolution thermal detector, 50° x 37.2° fixed focus lens, and an 8MP resolution visual camera. The high resolution 3.5-inch touch screen displays crisp, clear images and streamlines camera operations. Imaging modes include thermal, visual, picture in a picture of the optical and thermal view, and fusion of both channels. The M20W quickly identifies potential faults and quantifies the impact with accurate temperature measurement, provides detailed documentation to complete your inspections efficiently. Our comprehensive warranty package includes 3-year protection on components, 10-years on the uncooled sensor, and 2-year removable battery (if applicable).
SPECS
Model/Series: M Series
Thermal Sensor Resolution: 256 × 192 (49,152 pixels)
Super IR: 512 × 384 (196,608 pixels)
Temperature Range: -20 °C to 550 °C
Image Frequency: 25 Hz
NETD: < 40 mK (@ 25 °C, F#=1.0)
Field of View: 50° × 37.2° (H × V)
Zoom in Magnification: 1.0x to 8.0x continuous
Focus: Focus Free
