DRUM JACK STAND. 8T W.L.L. MAX DRUM 3M DIA X 2M WIDE
Description

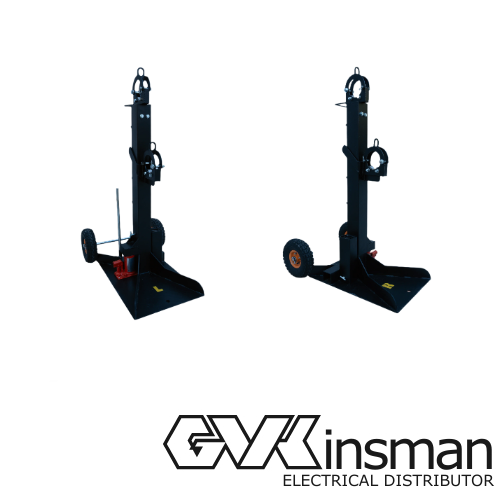

DJ8T is a matched pair of hydraulic drum jack stands for dispensing cable from timber or steel drums on site. Each upright carries a bottle jack, a sliding front bracket with a pinned safety gate, and a fixed top roller bracket, so the drum can be raised clear of the ground and left free to rotate under haul. The wide triangular feet are pre-drilled for anchoring, and a rear stabiliser bar ties the two uprights together to resist tipping across the pair. Cable can be drawn from over the top or from underneath.
Supplied as a matched handed pair – one left, one right – sold as one SKU.
Key features
- 8t top bracket working load per pair – proof loaded to 9t; front brackets rated 4t per pair, proof loaded to 5t.
- Takes drums to 3.0m diameter × 2.0m width on the drum's own axle.
- Integral hydraulic bottle jack in each upright – 6t each, with ram spacer plates to increase lift height where needed.
- Pinned front bracket safety gate with a removable locking pin retains the axle during haul.
- Rear stabiliser bar ties the pair together to resist tipping across the set.
- Pre-drilled anchor holes in each foot plate for fixing where the ground is not firm.
- Pneumatic wheels on each upright for positioning on site.
- Cable drawn over the top or from underneath to suit the pull direction.
- Black powder coat finish.
Specifications
| Part number | DJ8T |
|---|---|
| Rated working load, top brackets (pair) | 8t – proof load 9t |
| Rated working load, front brackets (pair) | 4t – proof load 5t |
| Maximum drum diameter × width | 3.0m × 2.0m |
| Drum support bar | 90mm OD × 2500mm |
| Rear stabiliser bar | 60mm OD × 2500mm |
| Front bracket retention | Pinned safety gate with removable locking pin |
| Minimum axle protrusion outboard of each upright | 125mm |
| Jack type | Hydraulic bottle jack, 6t each |
| Jack ram spacer plates | Fit between jack ram and stand plate to increase lift height |
| Wheels | Pneumatic, fitted to each upright |
| Anchor holes | Pre-drilled in each foot plate |
| Finish | Powder coat, black |
| Mass, pair including both bars | approx. 160kg |
Supplied as standard

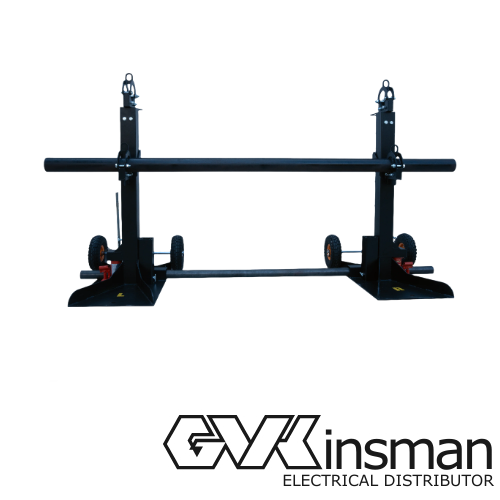

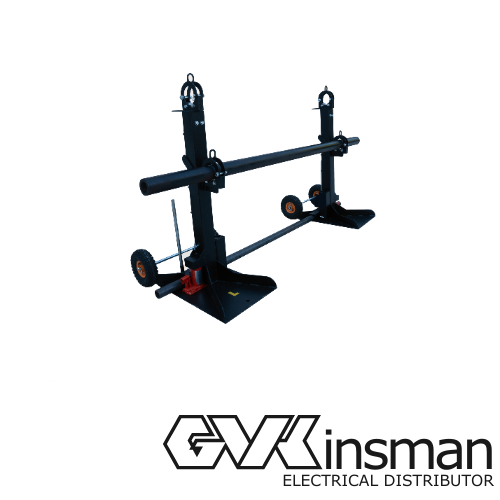

- 2 × handed uprights (one left, one right), each with integral bottle jack and pneumatic wheels
- 1 × 90mm drum support bar, 2500mm
- 1 × 60mm rear stabiliser bar, 2500mm
- 2 × axle cones with grub screws
- 2 × axle retention collars with grub screws
- 2 × jack ram spacer plates
- 1 × hex key
- Instructions for use
Safety and rating conditions
NEVER PLACE ANY PART OF THE BODY UNDER A RAISED DRUM. DJ8T supports and rotates a drum. It is not a lifting device and must not be used to lift, transport or suspend any load other than a cable drum located on its own axle. Raise the drum only as far as needed to give free rotation and cable clearance, then stop. Do not leave a raised drum unattended.
THE RATING DEPENDS ON HOW THE STAND IS SET UP. Rated working load applies only with the pair on solid level ground, both uprights raised evenly, axle cones fully seated and grub screws tightened, retention collars fitted, rear stabiliser bar installed, and a minimum of 125mm of axle protruding outboard of each upright. Anchor the feet where the ground is not firm. The front sliding brackets are rated lower than the top roller brackets.
Details
-
Size:8 TONNE SWL
-
Colour:BLACK
