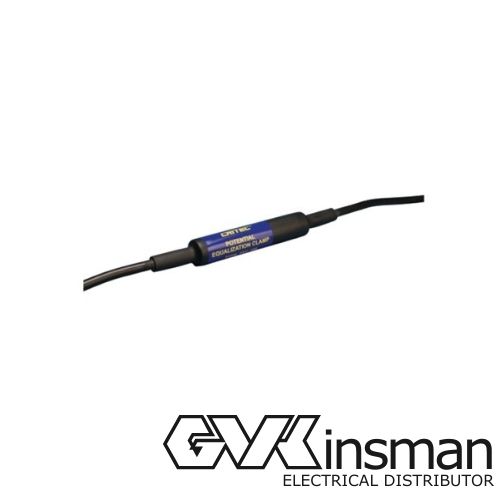

INSULATED JOINT PROTECTOR 350V 100KA

Stock Code:
PEC100
Make an Enquiry
Login For Price

Description

High peak current capability provides long service life
Weatherproof enclosure is suitable for direct burial
The PEC100 is ATEX approved and suitable for use in potentially explosive atmospheres

Features
• Spark-Over Voltage @ 100 V/s: 350 V
• Max Discharge Current (Imax): 100 kA 8/20 μs
• Technology: Gas Discharge Tube (GDT)
• Insulation Resistance: 1 GΩ Min
• Capacitance: 15 pF Max
• Voltage Protection Level (Up): 800 V @ 1,000 V/µs
• Impulse Current (Iimp): 25 kA 10/350 μs
• Lead Length: 450 mm
• Lead Size: 16 mm²
• Enclosure Rating: IP 66, IP 67
• Temperature: -30 to 70 °C

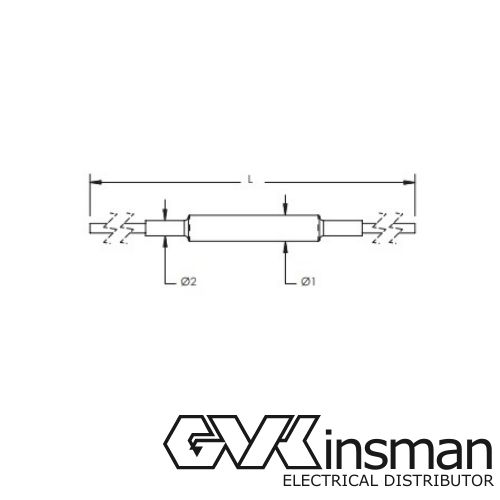

• Diameter 1 (Ø1): 28 mm
• Diameter 2 (Ø2): 16.3 mm
• Length (L): 953 mm
• Unit Weight: 0.5 kg
• Complies With: IEC® 61643-1 Class I, Class II, IEC® 62561-3
• Certifications: ATEX Baseefa13ATEX0113X, CE, IECEx BAS 13.0065X, Qualifoudre
