DIGITRACE HEAT TRACE CONTROL SYSTEM

Stock Code:
HTC-915-CONT
Login For Price

Description

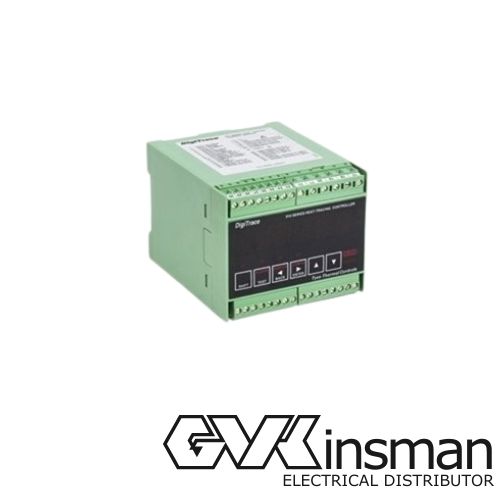

The nVent RAYCHEM HTC-915 system is a compact, fullfeatured microprocessor-based single-point heat-trace controller. The HTC-915-CONT provides control and monitoring of electrical heat-tracing circuits for both freeze protection and
temperature maintenance and can be set to monitor and alarm for high and low temperature, high and low current, ground fault level, and voltage. The nVent RAYCHEM HTC-915-CONT is provided with two outputs: one to drive an external contactor coil, and the other to drive an external solid-state relay (SSR). Communications capability is included for remote control and configuration, complete with Supervisor software capability.
