LOW PROFILE SPLICE - COLD APPLIED (BTV/QTV/XTV & KTV)

Stock Code:
S-150
Make an Enquiry
Login For Price

Description

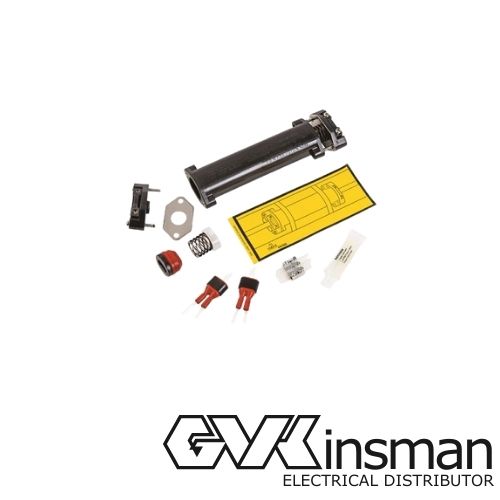

The nVent RAYCHEM S-150 is a cold-applied, low-profile splice for in-line connection. It is designed for use with the following RAYCHEM brand heating cables: BTV, QTVR, XTV, and KTV. Use the S-150 in applications with temperatures ranging from –60°F to 420°F (–50°C to 215°C). It is approved by FM,CSA and PTB for use in hazardous locations.
The unique design of the S-150 suits the demanding requirements of the industrial environment. The low-profile housing can be installed on pipes and other surfaces.
Spring-loaded grommets make a first seal to maintain a watertight connection, while the noncuring silicone-free sealant used in the RAYCHEM cold-applied core sealers add a second seal, providing additional protection. The rugged construction makes it resistant to impact and suitable for high-temperature and chemical exposure.
The splice requires no heat source for installation, and it is re-enterable, making maintenance fast and easy.
Each kit contains all the necessary materials to do one in-line splice connection.
