INTERPHASE INSULATING BARRIER BOARD 1200 X 1200 X 6MM SHEET

Stock Code:
RRBB-12126
Login For Price

Description

TE Connectivity’s Rigid Red Barrier Board (RRBB) is a non-structural, interphase barrier for switchgear applications. The RRBB board is made from a homogenous polymer
and has excellent track resistance, especially following a power-arc. It can be easily fabricated into a shape; it produces less nuisance dust and less tooling wear than other boards.

The use of RRBB barriers allows switchgear cabinets to be protected against interphase flashovers that can be caused by contaminants, moisture and animals.

The excellent tracking resistant properties provides longevity not found in typical polymers. UV properties of the barrier boads make it suitable for outdoor applications.

These extremely durable barrier boards are damage resistant from solvents, mechanical impact and general wear and tear usage. The UV properties of the barrier boards are suitable for outdoor applications. Machining properties allow boards to be cut and drilled for mounting without the need of special safety equipment. The innovative cross-linking polymer withstands power-arcs without compromising its physical shape. The high temperature resistant material can be wiped clean after power-arc events resulting in no visible effects of surface damages.

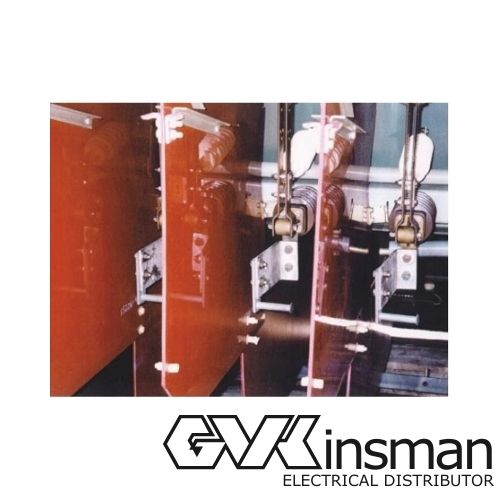

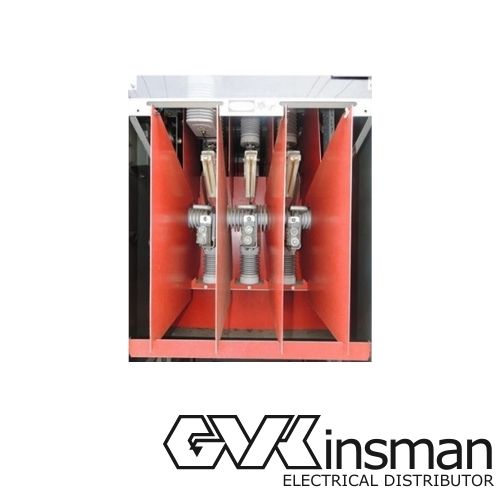

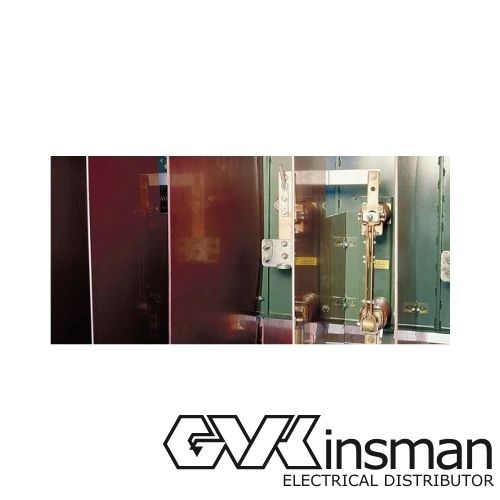

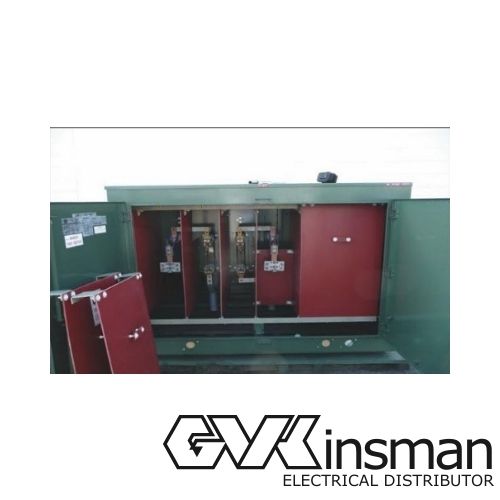

RRBB barriers protect switchgear cabinets against interphase flashovers that can be caused by contaminants, moisture and animals.
– Excellent tracking resistant properties provide longevity not found in typical polymers
– UV properties of the barrier boards are suitable for outdoor applications
– Extremely durable barrier boards resist damage from solvents, mechanical impact and general wear and tear
– Machining properties allow it to be cut and drilled for mounting without requiring special safety equipment
– Innovative cross-linking polymer withstands power-arcs without compromising its physical shape
– High temperature resistant material can be wiped clean after power-arc events resulting in no visible effects or surface damage

Details

  • Size:
    1200 X 1200 X 6MM
  • Colour:
    RED

Downloads
