SUBMERSIBLE GEL FILLED PIT CONNECTOR - 4 WAY 4-150MM² - 100A
Description
PowerGel sealing gel was specifically developed for the electrical power industry. It consists of a chemically cross-linked silicone elastomer with silicone oil. PowerGel sealing gel is hydrophobic and provides an excellent moisture seal over a wide operating temperature range (-40˚ C to 95˚ C). It is compatible with solid dielectric cable insulation and connector deoxidizing greases and has excellent insulation properties.
Fast, reliable installation - every time

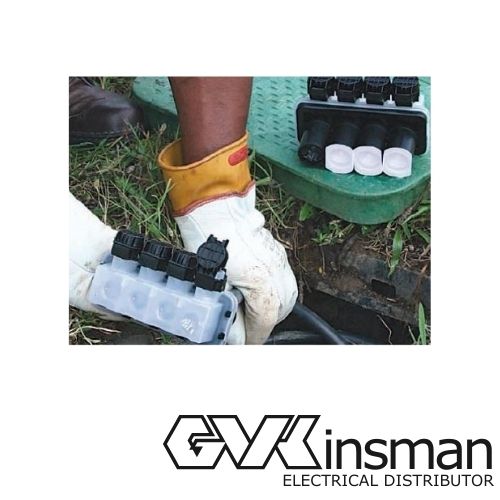

The GelPort connection system represents a revolutionary product for secondary connectors. Strip the cable and push it into the gel-filled cable port. The cable is encapsulated in gel and instantly sealed. It’s that simple.
Demand the best
- Corrosion resistance
- No loose parts due to one piece housing
- Gel-filled cable entry ports provide a reliable cable seal
- PowerGel sealing gel seals out harsh environments
- Rugged, impact-resistant housing stands up to rough installations
- Clear view back allows for easy positive visual indication of wire position in connector
Details
-
Size:4-150MM2
-
Colour:BLACK
