RAYCHEM TWO HOLE MECHANICAL LUGS
Description

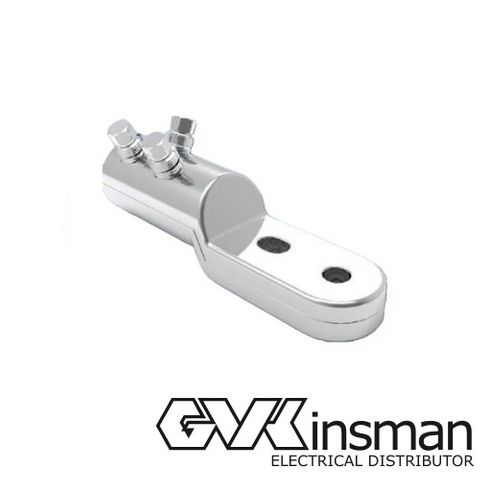

Mechanical shear bolt terminal lugs BLMT are designed for use in low, medium and high voltage applications. These products cover conductor sizes from 10 to 1000 mm², only three sizes cover conductor sizes from 25 mm² to 400 mm². All products consist of a tin-plated body, shear-head bolts and inserts for small conductor sizes.
Made of special aluminium alloy, these contact bolts are double shearhead bolts with hexagon heads. The bolts are treated with a highly lubricating agent. Contact bolts are irremovable once their heads have been sheared off . The Lug body is made of a high-tensile, tin-plated aluminium alloy. The internal surface of the conductor holes are grooved.
Lugs are suitable for outdoor and indoor applications and are available with different palm hole sizes. The bolted fitting featured herein was developed specifically for use in high and medium voltage cable accessories up to 84 kV. They may also be used in the 1 kV range
