CUSTOM EARTH BONDS
Description

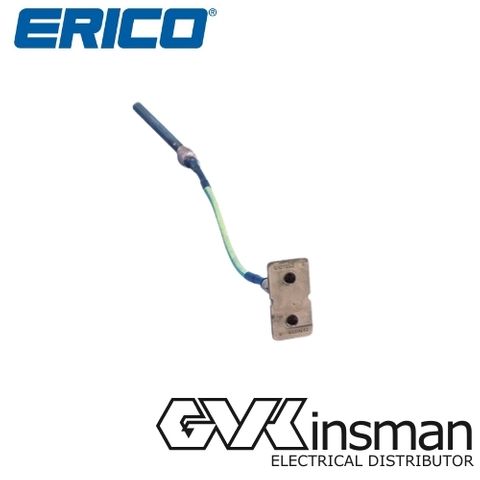

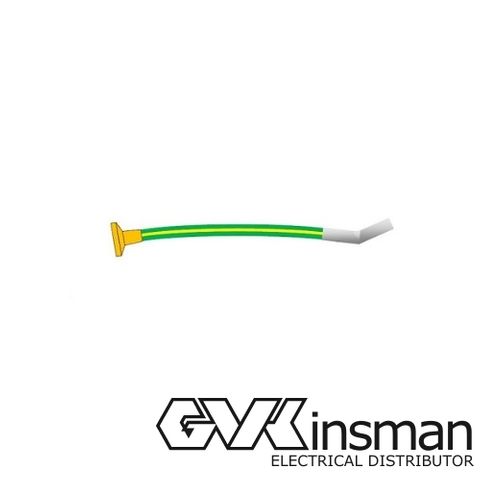

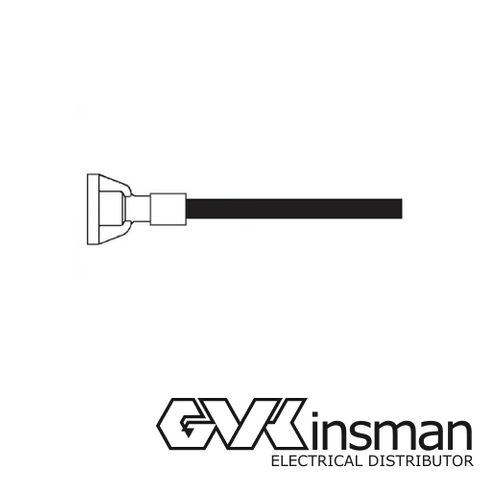

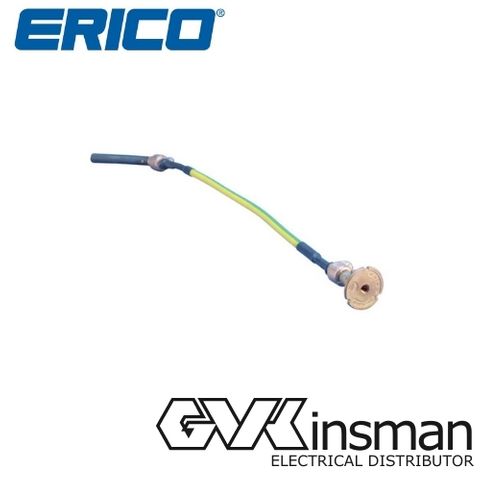

Earthbridges are assemblies made from a high-quality conductive earthpoint (connecting terminal) and various types of conductors. The ERICO CADWELD exothermic connection process is used to combine them together, forming a highly corrosion resistant and long-lasting assembly. This part number is a custom bond that can be fabricated to suit your application - download the custom order sheet to specify your options and send through to sales@gvk.com.au for a quote.
Features:
- Long-lasting design
- Low ground resistance and impedance
- Superior electrical conductivity and resistance to corrosion
- Electrically and mechanically robust and reliable
- Easy to install
Specifications:
- Part Number: RGBXX
- Material: Copper / Steel
- Earthpoint Type: DB, One Stud
- Conductor Type: Yellow-Green Insulated Cable to Solid Round Steel, 10° Angle
- Conductor Size: 70/120mm2 as standard - other sizes available upon request
- Overall Length: customised to your requirement
- Flange Diameter: 50 mm
- Thread Size: M12 or M16
