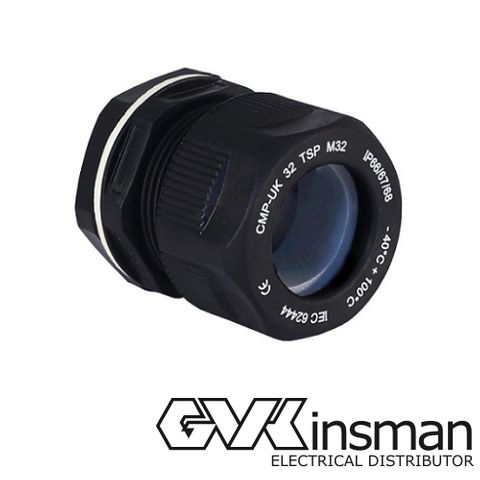

CMP NYLON CABLE GLANDS
Description
The TSP polymer strain relief range of cable glands are suitable for use in industrial (safe) areas with unarmoured or braided cable when terminated inside the enclosure, and have a temperature rating of +100°c to -40°c.
With the widest cable sealing range on the market, the TSP reduces the need to purchase a range of different sized cable glands for a project, reducing the overall cost.
The TSP range meets the requirements of well-known cable gland standards including EN 62444 and IEC 62444.
For more specific applications IP68 & IP69X ingress discs or plugs are available, as well as a flame retardant UL94 V-0 option.
Features include:
- Halogen and phosphorus free
- Finger-locking seal provides superior cable retention & strain relief- 3rd party certified to IEC 62444 and EN 62444
- Flame retardant UL94 V-0 version available
- Low weight with high stiffness and strength
- Widest cable range take for any comparable cable gland
- Available in a variety of colours (black as standard, see table to the left)
- Anti-vibration technology prevents gland loosening in operation
- Transit disc or IP68, IP69 & IP69K rated IP plug options available
- Approved entry thread sealing washer included
- Polyamide locknut available (ordering suffix 2TN) – delivered assembled
