CMP CWD ARMOUR GLANDS
  • CMP CWD ARMOUR GLANDS
  • CMP CWD ARMOUR GLANDS
  • CMP CWD ARMOUR GLANDS

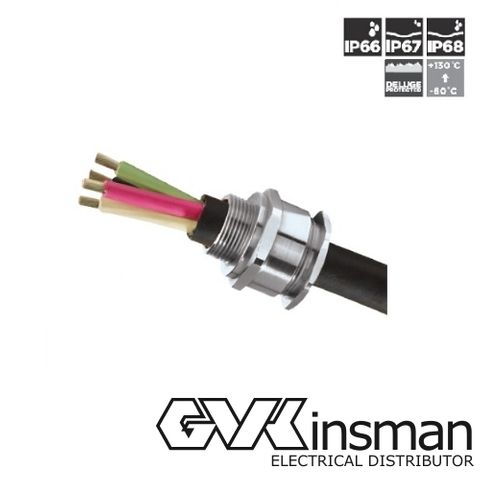

CMP CWD ARMOUR GLANDS

Description

For all types of Steel Wire Armoured (SWA) and Aluminium Wire Armoured (AWA) armoured glands

Features

• High quality durable materials
• Robust, heavy duty design
• Metal-to-metal armour clamping
• Direct and remote installation
• Controlled outer load retention seal
• Unique OSTG prevents over tightening
• -60°C to +130°C (standard)
• -20°C to +200°C (ThermIn option)
• Deluge protected superior EMC performance
• CWDVAR option available for copper tape screened SWA VSD cables

• Entry thread sealing washer and heavy duty locknut included as standard

Documents

Enquiry Code Product Name Details Price
Make an Enquiry
20SCWD1RA5/A
CABLE GLAND M20 FOR SWA OD 9.5 - 15.9MM
20SCWD1RA5/A

Details

  • Size:
    M20 / 9.5-15.9MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M20 / 9.5-15.9MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
20CWD1RA5/A
CABLE GLAND M20 FOR SWA OD. 12.5-20.9MM
20CWD1RA5/A

Details

  • Size:
    M20 / 12.5-20.9MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M20 / 12.5-20.9MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
25SCWD1RA5/A
CABLE GLAND M25 FOR SWA OD 14.0 - 22MM
25SCWD1RA5/A

Details

  • Size:
    M25 / 14-22MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M25 / 14-22MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
25CWD1RA5/A
CABLE GLAND M25 FOR SWA OD 18.2 - 26.2MM
25CWD1RA5/A

Details

  • Size:
    M25 / 18.5-26.2MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M25 / 18.5-26.2MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
32CWD1RA5/A
CABLE GLAND M32 FOR SWA OD 23.7 - 33.9MM
32CWD1RA5/A

Details

  • Size:
    M32 / 23.7-33.9MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M32 / 23.7-33.9MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
40CWD1RA5/A
CABLE GLAND M40 FOR SWA OD 27.9 - 40.4MM
40CWD1RA5/A

Details

  • Size:
    M40 / 27.9-40.4MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M40 / 27.9-40.4MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
50SCWD1RA5/A
CABLE GLAND M50 FOR SWA OD 35.2 - 46.7MM
50SCWD1RA5/A

Details

  • Size:
    M50 / 35.2-46.7MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M50 / 35.2-46.7MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
50CWD1RA5/A
CABLE GLAND M50 FOR SWA OD 40.4 - 53.1MM
50CWD1RA5/A

Details

  • Size:
    M50 / 40.4-53.1MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M50 / 40.4-53.1MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
63SCWD1RA5/A
CABLE GLAND M63 FOR SWA OD 45.6 - 59.4MM
63SCWD1RA5/A

Details

  • Size:
    M63 / 45.6-59.4MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M63 / 45.6-59.4MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
63CWD1RA5/A
CABLE GLAND M63 FOR SWA OD 54.6 - 65.9MM
63CWD1RA5/A

Details

  • Size:
    M63 / 54.6-65.9MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M63 / 54.6-65.9MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
75SCWD1RA5/A
CABLE GLAND M75 FOR SWA OD 59.0 - 72.1MM
75SCWD1RA5/A

Details

  • Size:
    M75 / 59-72.1MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M75 / 59-72.1MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
75CWD1RA5/A
CABLE GLAND M75 FOR SWA OD 66.7 - 78.5MM
75CWD1RA5/A

Details

  • Size:
    M75 / 66.7-78.5MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M75 / 66.7-78.5MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
90CWD1RA5/A
CABLE GLAND M90 FOR SWA OD 76.2 - 90.4MM
90CWD1RA5/A

Details

  • Size:
    M90 / 76.2-90.4MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M90 / 76.2-90.4MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
100CWD1RA5/A
CABLE GLAND M100 FOR SWA OD 89.1 - 101.5MM
100CWD1RA5/A

Details

  • Size:
    M100 / 89.1-101.5MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M100 / 89.1-101.5MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
115CWD1RA5/A
CABLE GLAND M115 FOR SWA OD 101.3 - 110.3MM
115CWD1RA5/A

Details

  • Size:
    M115 / 101.5-110.2MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M115 / 101.5-110.2MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
Make an Enquiry
130CWD1RA5/A
CABLE GLAND M130 FOR SWA OD 114.0 - 123.3MM
130CWD1RA5/A

Details

  • Size:
    M130 / 110.2-123.2MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
Make an Enquiry

Details

  • Size:
    M130 / 110.2-123.2MM CABLE OD
  • Colour:
    NICKEL PLATED BRASS
 Login For Price
