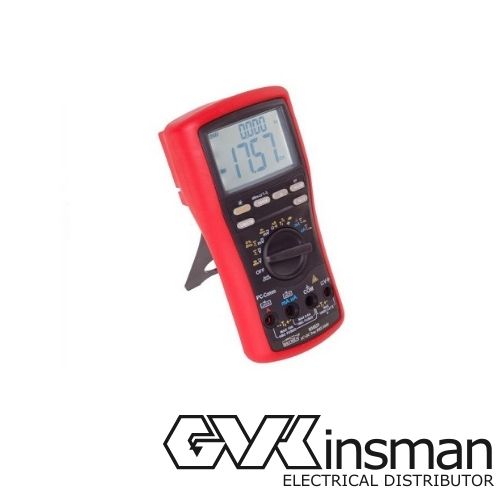

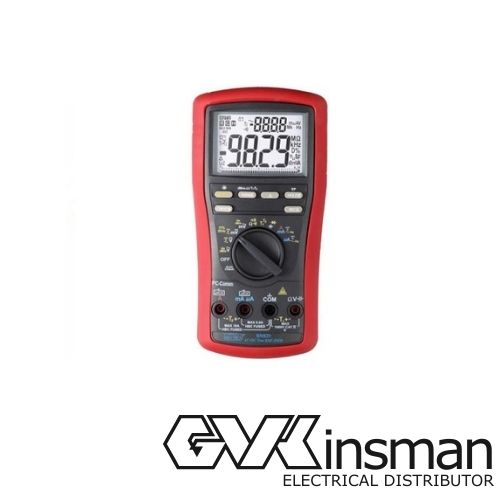

DUAL DISPLAY AC/DC 1000V MULTIMETER W. 2 CHANNEL TEMP

Stock Code:
BM829S
Make an Enquiry
Login For Price

Description

BM820 Series professional multimeter for those who only accept the best: CAT IV 1000V 4 digit reslolution, True RMS (AC&AC+DC), high speed and dual display multifeatures.

Includes NCV EF-detection, Auto Check™ and Ghost Voltage Buster™.

BM820 – first dual display digital multimeter series from Brymen. BM827 & BM829 define a new standard for operating in industrial conditions with the features and accuracy to troubleshoot most electrical problems. The highest 12kV transient protection, functions like Conductance (nS), dBm, 20kHz true RMS (AD+DC) measurement meet engineers requirement.

Unique features:

AutoCheck™ – automatic selection of LoZ (low imedance) DCV, LoZ ACV & Ohms (BM829s)

Beep-Jack™ – beeps against improper terminal plug in (decreases risk of damage),

Ghost Voltage Burster™– LoZ drains ghost/strain voltage leaving only hard signals on meter reading (BM829s)

REC – 50ms recording MAX, MIN, MAX-MIN & AVG

CREST 1ms – to capture instanteous peaks (BM829s)


MANUFACTURER
Brymen

DISPLAY
9999, Backlighted, Bargraph, Dual

SAMPLING
5x/s

TRUE RMS
AC, AC + DC

ACCURACY (DCV)
0,06% + 2d

FUNCTION & FEATURES
Professional multimeter

OTHER MEASUREMENTS (MAX RANGE)
Capacitance 25mF, Conductance 99nS, Frequency (logic) 1000kHz, Frequency 50kHz, Temperature T1,T2 -50~1000°C

SPECIAL FEATURES
AutoCheck (TM), dBm, DUTY%, EF-Detection

SPECIAL FUNCTIONS
AVG, Crest 1ms, HOLD, MAX, MAX-MIN, MIN, REL

INTERFACE
USB

OVERLOAD PROTECTION
1000V

SURGE PROTECTION
12kV

MEASUREMENT CATEGORY (SAFETY)
CAT IV

CATEGORY VOLTAGE
1000V

STANDARD ACCESSORIES
Battery installed, BKP60 K-type thermocouple, Holster, Test leads (pair), User's manual

OPTIONAL ACCESSORIES
BU-86X USB Interface kit

DIMENSIONS: HEIGHT
208mm

DIMENSIONS: WIDTH
103mm

DIMENSIONS: DEPTH
64,5mm

WEIGHT
635g

Details

  • Colour:
    BLACK/RED
