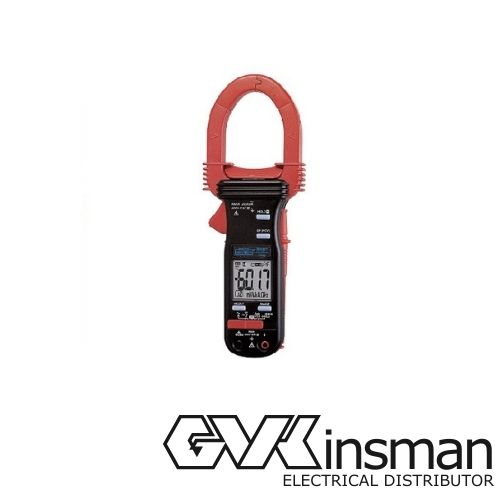

CLAMP METER 2000A AC WITH LARGE CLAMP UP TO 45MM DIA.

Stock Code:
BM117S
Make an Enquiry
Login For Price

Description

DATA HOLD Freezes The Displaying
Reading For Later Viewing

BATTERY COMPARTMENT With Access Door For
Easy Battery Replacement

PROBE HOLDERS Built-In Probe Storage Holders

ELECTRIC FIELD EF-DETECTION Features Both Non-Contact &
Probe Contact EF-Detection
For Tracing Live Wiring

AUTOCHECK FEATURE Automatic Selection Of
LoZ DCV, LoZ ACV & OHMS

GHOST-VOLTAGE-BUSTER LoZ Drains Ghost/Stray Voltages
Leaving Only Hard Signals
On Meter Readings

AUTOCHECK-RESISTANCE 4 Ranges; Auto-Ranging Up To 6 MO

CAPACITANCE 5 Ranges; Auto-Ranging
Up To 2000µF With 600V Protection

DIODE TEST For Testing Diodes And Rectifiers

600 OHMS RANGE WITH AUDIBLE CONTINUITY For Low Resistance & Quick Open-Short
Tests On Switches, Fuses, And Wires

TRANSIENT PROTECTION Up To 6.5kV 1.2/50µs Lightning Surge;
More Confidence For Serious Users

EMC Meets EN61326(1997, 1998/A1),
EN61000-4-2(1995), & EN61000-4-3(1996)

UP TO AC 2000 AMPS MEASUREMENTS 2 Non-Invasive AC Current Auto-Ranges
VIA Clamp Jaws; Best Resolution 0.1A

HIGH VOLTAGE Hz Measures Noisy High Voltage
ACV Frequencies VIA Test Leads

HIGH IMPEDANCE VOLTAGE 600VAC/DC Measuring Capabilities;
High Input Impedance For
Load Sensitive Circuits

0.5% DCV BASIC ACCURACY 3 Ranges; Auto-Ranging
Up To 600 Volts, 0.1V Resolution

LVD CAT III 600V SAFETY Meets EN61010-2-032 CAT III 600V

RUGGED & DURABLE High-Impact Fire-Retarded Enclosure
For Reinforced Safety & Reliability

LARGE U-SHAPE CLAMP JAWS Measure ACA Of Large Single Conductor
Or Differential ACA Of Multiple Conductors

EF ANTENNA Conveniently Located At The Jaw Tip
For Non-Contact EF-Detection (NCV)

STYLISH & HANDY Also Comes With A Soft Pouch
For Easy Carrying & Protection

Details

  • Colour:
    BLACK/RED
