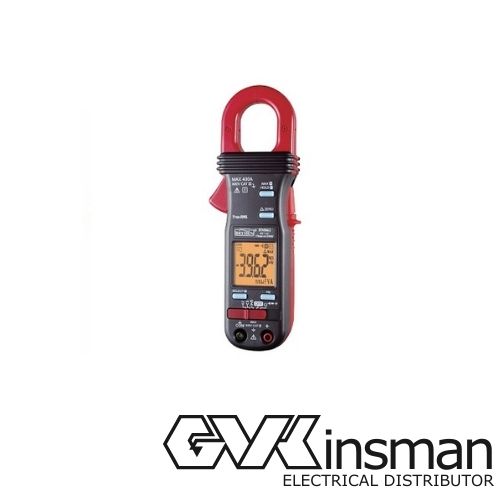

CLAMP METER 400A AC/DC SINGLE DISPLAY COMPACT

Stock Code:
BM062S
Make an Enquiry
Login For Price

Description

30ms MAX HOLD Captures Peak In-Rush Current
As Short As 30ms In Duration

DATA HOLD Freezes The Displaying
Reading For Later Viewing

BATTERY COMPARTMENT With Access Door For
Easy Battery Replacement

PROBE HOLDERS Built-In Probe Storage Holders

RELATIVE ZERO MODE For Convenient Readings Comparison
& DCA Zero Adjustment

LARGE EASY-TO-READ LCD DIGITS With 3/sec Nominal Update Rate

HIGH VOLTAGE (ACV) Hz Measures Noisy High Voltage
ACV Frequency VIA Test Leads

DIODE TEST For Testing Diodes And Rectifiers

CAPACITANCE 6 Ranges; Auto-Ranging
Up To 3000µF With 600V Protection

AUDIBLE CONTINUITY For Quick Open-Short Tests
On Switches, Fuses, And Wires

RESISTANCE 6 Ranges; Auto-Ranging
Up To 40Mega OHMS With 600V Protection

TRANSIENT PROTECTION Up To 6.5kV 1.2/50µs Lightning Surge;
More Confidence For Serious Users

EMC Meets EN61326-1:2006
(EN55011, EN61000-3-2/-3 &
EN61010-4-2/-3/-4/-5/-6/-8/-11 )

AC 400 AMPS MEASUREMENTS Non-Invasive AC Current
VIA Clamp Jaws; Best Resolution 0.1A

DC 400 AMPS MEASUREMENTS Non-Invasive DC Current
VIA Clamp Jaws; Best Resolution 0.1A

5 FULL AC VOLTAGE RANGES From 400mV Range
Up To 600 V Range

5 FULL DC VOLTAGE RANGES From 400mV Range
Up To 600 V Range

FUNCTION SELECTION Conveniently Toggle Between
Primary & Secondary Functions

DISPLAY BACKLIGHT For Easy Viewing In The Dark

HIGH SPEED AUTO-RANGING Shortens The Time To Test
And Increases The Ease Of Use

TRUE RMS For Non-Sinusoidal Waveforms
Of AC Voltages & AC Currents

LVD CAT III 600V SAFETY Meets EN61010-1 & EN61010-2-032
2nd Edition CAT III 600V

RUGGED & DURABLE High-Impact Fire-Retarded Enclosure
For Reinforced Safety & Reliability

SMALL DCA/ACA CLAMP JAWS For Easy Access To Tight Places
With 400A DC/AC Capability

STYLISH & HANDY Also Comes With A Soft Pouch
For Easy Carrying & Protection

Details

  • Colour:
    BLACK/RED
